For this lecture we will discuss the basic structure of carbohydrates. Understanding the basic molecular components of a carbohydrate will give you the foundation needed to comprehend digestive and absorptive mechanisms. Beyond digestion and absorption having knowledge of the carbohydrate structure is also necessary in understanding metabolism.
Understand the basic structure of carbohydrates
Distinguish between the three classes of carbohydrates and the relevance to our diet
Understand the significance of glycosidic bond configuration related to digestive processes
Describe different storage forms of polysaccharides found in plants and humans

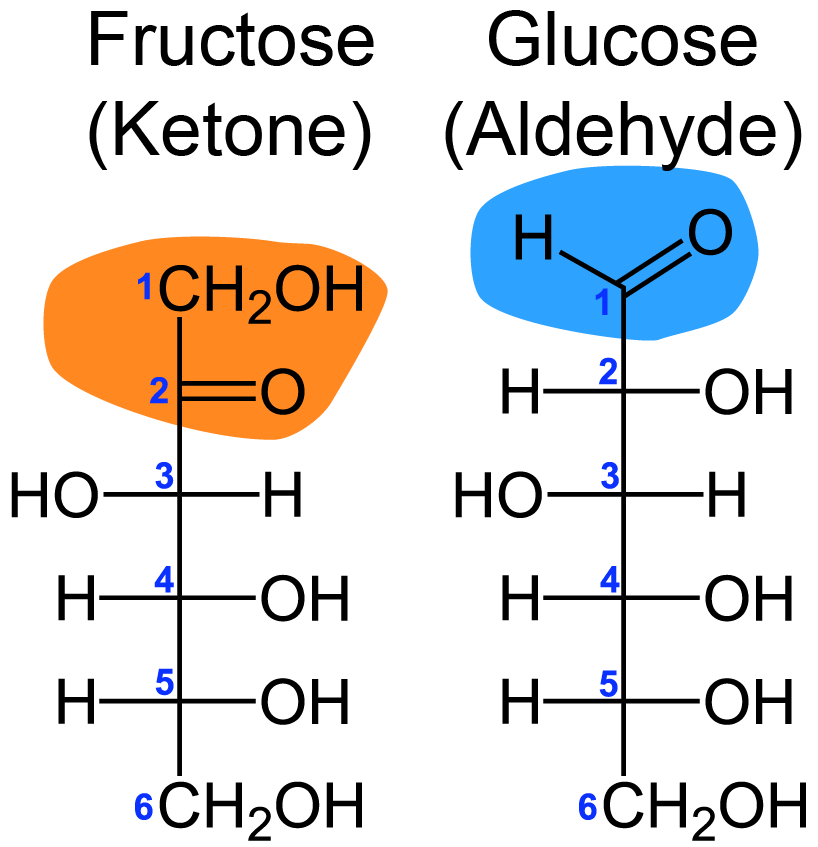

Carbohydrate is commonly abbreviated as CHO, giving us insight into its basic structural components. They are made of carbon chains with hydrogen and oxygen groups having the standard molecular formula of Cn (H20)n. The carbohydrate structure contains two types of functional groups — First, a hydroxyl (-OH) and Second carbonyl. A carbonyl group contains a carbon double bonded to oxygen. There are two types of carbonyl groups that a carbohydrate can contain — either an aldehyde or a ketone. The structure of an aldehyde carbohydrate includes a carbon double bonded to oxygen at the end of the carbon chain, while for a ketone, the double bond is a non-terminal carbon (Figure [fig:sugar-aldehydes]).
The first and simplest class is monosaccharides, often referred to as simple sugars. Monosaccharides include glucose, fructose and galactose. They are found in food sources such as honey, fruits and corn syrup. Typically carbohydrates are not in this simple form in food sources, but during digestion humans break down larger carbohydrates to simple sugars because they are the form of carbohydrates that can be absorbed at the small intestine. Before discussing the larger carbohydrate classes and digestion of carbohydrates, it is important to review the basic CHO nomenclature, chiral nature of the monosaccharide, and a glycosidic bond.
The systematic naming of monosaccharides is useful to understand because it can help you visualize the molecular make-up of that carbohydrate unit. An aldehyde will contain the suffix “-ose”, while a ketone will contain the suffix -ulose. Remember that a carbohydrate is a carbon chain with anywhere from three to seven carbons. Thus, a six- carbon aldehyde carbohydrate is called a hexose, while a six-carbon ketone would be designated as a hexulose. The nomenclature can help to visualize the structure of the carbohydrate, but for the carbohydrates most nutritionally and metabolically relevant, we tend to call them by their trivial names (e.g., glucose, which is technically a hexose).
We must briefly discuss the stereoisomerism of carbohydrates because most digestive enzymes, metabolic enzymes and transport mechanisms are stereospecific. Carbohydrates are molecules that are optically active, meaning that if a polarized light were to be passed through it, the light would either rotate to the right (D designation) or the left (L designation). The light rotation is an effect of a chiral carbon atom in the carbon chain. A chiral carbon is carbon with four different groups attached to it. Glyceraldehyde, a triose, is an example of a carbohydrate containing one chiral carbon (Figure [fig:sugar-chiral]).

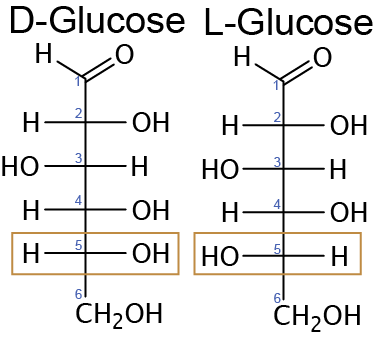

It is important to note that a carbohydrate with a chain consisting of more than three carbons will have multiple chiral carbons in which the highest numbered chiral carbon will dictate the rotation of the light, thus the D- or L-designation . In other words, glucose, a hexose, can exist in the D-glucose or L-glucose form dependent on the spatial arrangement of the hydroxyl group on its highest numbered chiral carbon (Figure [fig:sugar-numbering]).
Most monosaccharides with five or more carbon atoms do not exist predominantly in their open-chain (linear) form in solution. Instead, they undergo an intramolecular reaction where a hydroxyl group attacks the carbonyl carbon, forming a hemiacetal (in aldoses) or hemiketal (in ketoses). This cyclization creates a ring structure — typically a six-membered pyranose ring (like glucose) or a five-membered furanose ring (like fructose).

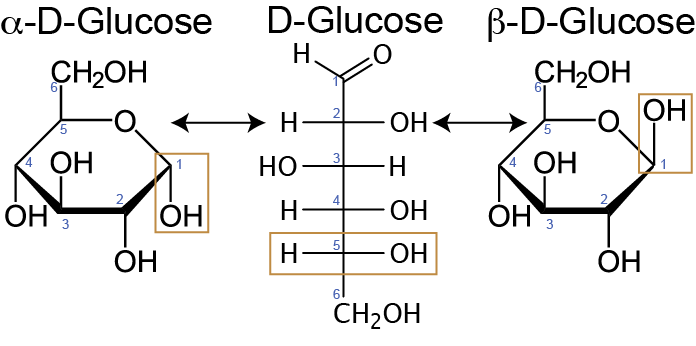

The carbon that was part of the carbonyl group becomes a new stereocenter called the anomeric carbon, respectively, of the hydroxyl group (Figure [fig:sugar-ab]).. Two stereoisomers may form at this carbon:
\(\alpha\)-anomer — the OH on the anomeric carbon is on the opposite side of the ring (trans) from the CH\(_2\)OH group.
\(\beta\)-anomer — the OH on the anomeric carbon is on the same side (cis) as the CH\(_2\)OH group.
These forms interconvert in solution through a process called mutarotation.
Understanding the anomeric configuration is essential in nutrition because digestive enzymes such as \(\alpha\)-amylase are specific to \(\alpha\)-1,4-glycosidic bonds (as in starch), and cannot cleave \(\beta\)-1,4 bonds (as in cellulose). This specificity underlies why cellulose is indigestible in humans.
All monosaccharides can interchangeably cyclize or decyclize. As a result at times the ketone or aldehyde group is free and could react with other food components. One important reaction in cooking is the Maillard reaction where a reducing sugar reacts with an amino group from an amino acid. This is what gives food its distinctive brown color and creates new flavors. Note in Figure [fig:glycosidic-bonds] that when a sugar is part of a disaccharide, oligosacchardie or polysaccharide the aldehyde or ketone may no longer be free, and it can trapped as part of the glycosidic bond. If both anomeric carbons are part of the glycosidic bond, the compound is no longer a reducing sugar.

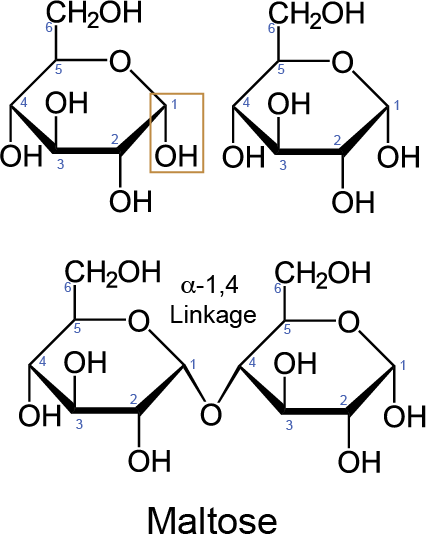

The glycosidic bond is named after the direction (alpha- or beta-) of the hydroxyl group attached to the anomeric carbon, the anomeric carbon number and the carbon number of the subsequent monosaccharide linking the units together (Figure [fig:glycosidic-bonds]). To form oligo- or polysaccharides through glycosidic bonding, the monosaccharides undergo a reaction that eliminates a water (H20) group called condensation (Figure [fig:glycosidic-bonds]). Alternatively, the oligo- or polysaccharides can be broken down to their respective monosaccharide units through hydrolysis, or the addition of a water molecule. Hydrolysis is the key reaction of digestion that will break apart larger carbohydrate units from food into monosaccharide units that are available for absorption at the small intestine.
The three major disaccharides in dietary source are maltose, lactose and sucrose. Maltose consists of two alpha-D-glucose units linked by an alpha 1,4 glycosidic bond (Figure [fig:glycosidic-bonds]). Lactose contains a beta-D-glucose linked to a beta-D-galactose by a beta 1,4 glycosidic bond. Sucrose consists of an alpha-D glucose linked to beta-D fructose by an alpha 1, beta 2 glycosidic bond. The anomeric carbons from both the glucose and fructose units form the glycosidic bond of sucrose, thus there is an alpha- and beta-designation in the glycosidic bond name.
The next class of carbohydrates is oligosaccharides. They contain 2–10 monosaccharide units with each unit linked by a glycosidic bond. These are less common in our diets but some examples include raffinose (Gal-Glu-Fru, in brussels sprouts, asparagus and cabbage) and stacchyose (Gal-Gal-Glu-Fru, in beans). We are unable to digest raffinose and stacchyose and therefore are fermented by the microbiota in our large intestine. Fermentable oligosaccharides are one source of irritable bowel syndrome (IBS), a class of triggers known as FODMAPs. FODMAP elimination diets are a common treatment for IBS, but generally only in the short term as they can result in severe nutrient deficiencies (van Lanen, de Bree, and Greyling 2021).
Polysaccharides contain 11 or more and up to 10,000,000 monosaccharide units. The monosaccharide units of the polysaccharide can be the same (homopolysaccharide) or can have varying monosaccharide units (heteropolysaccharide). Another characteristic of polysaccharides is their degree of branching. Some are linear and contain zero branching units while others have varying degrees of branching. Typically, the more branching the more water-soluble the polysaccharide is (see Fiber reading for more information on water-solubility and polysaccharides). The branching also becomes important for storage capacity, which we will discuss in more detail when we talk about specific polysaccharides in the following subsections. There are three polysaccharides we will discuss that have relevant implications in human nutrition — starch, glycogen and cellulose. Common among these three polysaccharides is that they are all homopolysaccharides containing only glucose units.
(e.g., tubers, seeds, roots, some fruits). Starch is found in two forms, amylose and amylopectin. Amylose is linear, unbranched and made of alpha-D-glucose connected by an alpha 1,4 glycosidic bond. Amylopectin is moderately branched and a homopolymer of alpha-D-glucose linked by alpha 1,4 bonds on the linear chains but by alpha 1,6 bonds at the branching points. The typical length of a linear between branching points of amylopectin is 20–25 glucose units. In uncooked food sources containing starch, the linear structure of amylose allows it to be tightly packed. This creates a structure that is not as readily digestible as the branched, less packed structure of amylopectin. In contrast, the processing and heating of amylose-containing foods (i.e., cooking) can loosen hydrogen bonds within the structure making it more accessible for digestion.
This bond arrangement is significant in the digestive tract because digestive enzymes are not specific to this organization, thus cellulose is non-digestible (further explanation in Digestion section and Fiber reading) and is an insoluble fiber source. Like amylose, the linear structure allows cellulose to be highly packed within plant cell walls, thus cellulose is key for the structural stability of plant cell walls.. Insoluble fibers such as cellulose add bulk to stool and help to regulate bowel movements.
Glycogen is abundant in skeletal muscle and liver tissue of mammals. The glucose units are linked by \(\alpha\) 1,4 bonds on the linear chains but by \(\alpha\) 1,6 bonds at the branching points (just like amylopectin). The typical length of a linear chain between branching points is 10–14 glucose units producing a higher molecular weight compound compared to amylopectin. The highly branched structure of glycogen allows for increased storage capacity in mammal tissue. More branching also allows for a higher degree of accessibility for metabolic enzymes, thus glycogen is a ready source of energy for humans (and other mammals). . Glycogen as a major storage form of glucose can support blood glucose in a healthy individual for 12-24 hours, depending on the individual and their activity level (Horton and Hill 2001).
